What Is A Windage Tray?

A windage tray is a device installed inside an engine’s crankcase designed to minimize power loss due to windage. It serves as a barrier between the crankshaft and the oil residing in the oil pan, reducing the parasitic loss that occurs when the crankshaft comes in contact with the oil.

In more detail, a windage tray is a flat, perforated plate that you’ll find located between the crankshaft and the oil in an engine. This clever piece of engineering has holes or louvers to allow oil, splashed up from the crankshaft’s movement, to drain back down into the oil pan while minimizing the oil mist generated when the crankshaft spins.

The windage tray’s specific design features depend on the type and model of the vehicle it’s intended for. However, regardless of its design, a windage tray plays a pivotal role in maintaining an engine’s performance by reducing the parasitic drag created by windage and ensuring the engine’s rotating assembly operates more efficiently.

In essence, the windage tray is a crucial part of the automotive puzzle, working silently but effectively to enhance your vehicle’s engine performance.

How Does A Windage Tray Work?

When the engine is running, the crankshaft rotates rapidly, causing the oil in the oil pan to churn and create an oil mist. This churning effect, known as windage, can create a drag on the crankshaft, leading to a decrease in engine efficiency and power.

That’s where the windage tray comes in. It is strategically placed between the spinning crankshaft and the oil in the oil pan. The tray’s perforated design allows oil splashed upwards by the crankshaft’s rotation to drain back down into the oil pan. Simultaneously, it serves as a shield, preventing the swirling oil mist from coming into contact with the crankshaft. This separation significantly reduces the parasitic power loss due to windage.

Moreover, by ensuring that the oil quickly drains back to the oil pan, the windage tray aids in maintaining an optimal oil supply to the engine components, promoting their smooth operation and longevity.

Understanding how a windage tray works underscores its contribution to your vehicle’s engine performance. It’s a simple yet effective component that enhances engine efficiency by reducing power loss and promoting smoother engine operation

The Benefits of Windage Trays

There are numerous advantages to incorporating a windage tray into your vehicle’s engine design. Far from being a mere component, a windage tray plays a significant role in improving engine performance and durability. Let’s delve into some of these benefits:

1. Reduced Parasitic Power Loss: As discussed, the primary benefit of a windage tray is its ability to reduce parasitic power loss caused by windage. By separating the crankshaft from the oil mist, the tray minimizes drag on the crankshaft, thereby boosting engine efficiency.
2. Improved Oil Control: Windage trays play an important role in managing oil in the crankcase. By allowing splashed oil to drain back into the oil pan quickly, it ensures that there’s always an optimal oil supply for the engine’s moving parts. This aids in smoother engine operation.
3. Enhanced Engine Longevity: By reducing power loss and improving oil control, windage trays indirectly contribute to the longevity of your engine. With less stress on the engine components and better lubrication, the wear and tear on the engine are substantially reduced, leading to a longer engine lifespan.
4. Increased Horsepower: Several studies and real-world applications have shown that installing a windage tray can lead to an increase in horsepower. This is a direct result of the reduced drag on the crankshaft, allowing it to rotate more freely and efficiently.
5. Reduced Oil Temperature: By preventing excessive churning of the oil, a windage tray can help reduce the oil temperature in your engine. This ensures that the oil retains its viscosity and lubricating properties, contributing further to engine performance and longevity.

By understanding these benefits, it becomes evident why windage trays are considered an essential component in high-performance vehicles. From race cars to heavy-duty trucks, the application of windage trays has proved invaluable in ensuring optimal engine performance and durability.

Different Types of Windage Trays

Windage trays are not one-size-fits-all. They come in various types, each designed to cater to different engine setups and performance requirements. Here, we’ll examine some common types of windage trays and discuss their pros and cons:

1. Full-Length Windage Trays: These windage trays span the entire length of the oil pan and provide comprehensive coverage. They’re particularly effective in engines that experience high RPMs regularly, such as race car engines. However, their size can make installation more challenging.
2. Partial Windage Trays: Partial windage trays cover only a section of the crankcase. They’re easier to install and are suitable for moderate-performance engines. While they might not offer the same level of efficiency as full-length trays, they still provide substantial benefits in reducing windage.

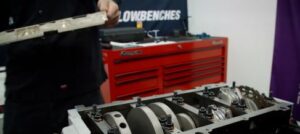

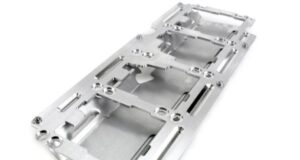

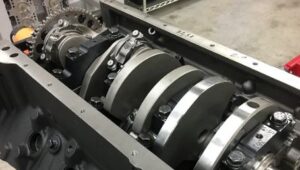

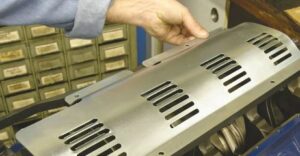

3. Louvered Windage Trays: These trays feature a series of angled slats or louvers that guide the oil back into the pan while minimizing upward oil splash. Louvered trays are excellent for high-performance applications, although they might be slightly more expensive than other types.
4. Screen Windage Trays: These feature a screen-like design that provides a good balance between oil drainage and windage reduction. They’re generally more affordable and easier to install than louvered trays but may not offer the same level of efficiency in high-RPM engines.

When choosing a windage tray, it’s essential to consider your engine’s performance requirements and the specific conditions it operates under. It’s always a good idea to consult with a professional or do thorough research before making your choice.

Frequently Asked Questions About Windage Trays

Given the technical nature of windage trays, it’s natural to have a few queries. Here, we address some commonly asked questions to further your understanding of this important engine component:

1. Are windage trays necessary for all engines? While not all engines come with a windage tray, installing one can improve engine efficiency and longevity, especially in high-performance vehicles that frequently operate at high RPMs.
2. Can I install a windage tray myself? Yes, it’s possible to install a windage tray yourself if you have mechanical knowledge and the right tools. However, it’s recommended to have a professional do it, particularly for high-performance engines, to ensure it’s installed correctly.
3. Does a windage tray increase horsepower? A windage tray itself doesn’t generate horsepower. However, by reducing the parasitic power loss caused by windage, it allows the engine to use more of its power for driving the vehicle, which can result in a noticeable increase in horsepower.
4. Does a windage tray affect oil pressure? By aiding in oil control and reducing oil churning, a windage tray can help maintain stable oil pressure, particularly at high RPMs. This contributes to the consistent performance of the engine.
5. Do windage trays fit all types of engines? Windage trays are not universally fitting. They’re designed to fit specific engine types and models. Therefore, it’s crucial to choose a windage tray that’s designed for your particular engine.
6. Can a windage tray improve fuel efficiency? Yes, by reducing the power loss due to windage, a windage tray can improve engine efficiency, which can lead to better fuel economy in some cases.

Conclusion

In conclusion, windage trays are essential components that play a significant role in optimizing engine performance and efficiency. By effectively managing the interaction between the crankshaft and the oil in the oil pan, windage trays reduce power loss due to windage and promote smoother engine operation.

We have explored the function and benefits of windage trays, understanding how they work to separate the crankshaft from the oil mist and minimize drag. The advantages of installing a windage tray include reduced parasitic power loss, improved oil control, enhanced engine longevity, increased horsepower, and reduced oil temperature.

It’s crucial to consider the different types of windage trays available, such as full-length trays, partial trays, louvered trays, and screen trays, to choose the one that best suits your engine’s performance requirements and operating conditions.

Whether you’re a racing enthusiast seeking every ounce of power or a daily driver looking to enhance your vehicle’s performance and longevity, incorporating a windage tray can make a noticeable difference. Consult with professionals, perform thorough research, and follow manufacturer guidelines to ensure proper installation and compatibility with your specific engine.
