When it comes to smooth vehicle operation and control, every component in your steering system plays a crucial role. One such underappreciated component is the pitman arm. This relatively small part is instrumental in ensuring that your steering movements are translated into directional changes for your vehicle, thus playing a critical role in your driving experience.

Despite its importance, the pitman arm often goes unnoticed until problems start arising. Understanding the function of the pitman arm and being able to recognize signs of trouble can save you from unnecessary stress and potential hazards on the road.

In this blog post, we delve into the world of pitman arms – what they are, their role in your vehicle’s steering system, how to identify when something goes wrong, and what to do when it does. Whether you’re a seasoned mechanic or a car owner who loves to understand how things work, this guide will give you a comprehensive look into the workings of pitman arms and help you keep your vehicle in top shape.

What Is A Pitman Arm?

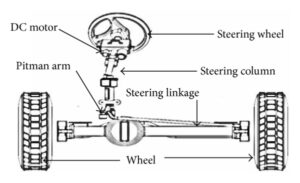

A pitman arm is a critical component of the steering system in vehicles, typically found in trucks and SUVs. It’s a lever that converts the radial motion from the sector gear into linear motion, which allows the wheels to move left or right in response to the driver’s steering wheel input. In essence, it’s the mechanical link between the steering gear and the steering linkage.

How Does A Pitman Arm Work?

Diving deeper into its function, the pitman arm connects to the steering gear sector shaft. When you turn the steering wheel, it rotates the sector shaft, which moves the pitman arm. The pitman arm, in turn, pushes or pulls the steering linkage, causing the wheels to turn. Given its function, you can see why it’s a vital part of the steering mechanism.

Understanding the role of the pitman arm can help you appreciate the intricate nature of your vehicle’s steering system. Each turn of the wheel, each maneuver you make, all are made possible, in part, by this key component. It’s also why maintaining the health of your pitman arm is so crucial – a damaged or worn-out pitman arm can significantly impact your vehicle’s steering capabilities. So next time you take a turn, spare a thought for the hardworking pitman arm that makes it all possible.

What Are The Symptoms Of A Bad Pitman Arm?

A pitman arm in good working condition is essential for smooth and responsive steering. However, like any other mechanical part, it can wear out over time or get damaged, leading to a host of issues. Being able to identify the symptoms of a bad pitman arm is a crucial part of preventative vehicle maintenance. Here are the most common signs that your pitman arm may need attention:

1. Loose Steering: A worn-out or damaged pitman arm can lead to loose steering, where the steering wheel feels less responsive than usual. This is often the first sign of trouble and should be addressed immediately to prevent further damage.
2. Wandering Steering: This is when your vehicle sways or drifts to one side while driving, even when you’re trying to steer straight. This can be a result of excessive wear in the pitman arm.
3. Abnormal Tire Wear: A faulty pitman arm can lead to uneven tire wear, as it can affect wheel alignment. If you notice your tires wearing out faster or unevenly, it’s wise to check the pitman arm.
4. Steering Wheel Play: If there’s too much free movement or “play” in the steering wheel before the wheels respond, it could signal a problem with the pitman arm.
5. Noises When Steering: If you hear noises, such as clunking or squeaking, when you turn the steering wheel, it could be due to a worn-out pitman arm.
6. Difficulty Steering: If steering your vehicle becomes difficult, especially at low speeds, it may indicate a serious problem with the pitman arm.

These symptoms are all potential indicators of a bad pitman arm, but they can also be caused by other issues in the steering or suspension systems. Therefore, if you notice any of these symptoms, it’s best to have your vehicle checked by a professional to diagnose the exact problem. Remember, a well-functioning pitman arm is not just about vehicle performance, but also about your safety on the road.

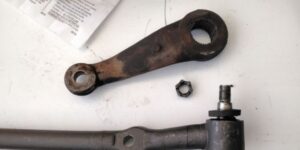

How Does A Pitman Arm Fail?

While pitman arms are designed to be durable and resilient, like any other part of your vehicle, they can fail over time. Several factors can contribute to pitman arm failure:

• Wear and Tear: The most common cause of pitman arm failure is simple wear and tear. The pitman arm is constantly in motion while driving, leading to gradual wear over time. This is a natural process and is why regular inspections and maintenance are crucial.
• Poor Maintenance: Neglecting regular vehicle maintenance can hasten the demise of your pitman arm. Regular inspections can catch early signs of wear or damage, preventing more significant issues down the line.
• Accidents and Impact: Accidents or any kind of impact can cause immediate damage to the pitman arm, leading to steering problems.
• Bad Roads: Regularly driving on rough roads, over potholes, or off-road can put extra stress on the pitman arm, leading to premature failure.
• Improper Installations or Repairs: If a pitman arm isn’t correctly installed or repaired, it can lead to premature failure. Always ensure you or your mechanic follow proper installation procedures and use the right tools.
• Use of Low-Quality Parts: Low-quality or counterfeit pitman arms may not meet the specifications of the vehicle manufacturer, which can lead to early failure. Always use high-quality, genuine parts for replacements.

How To Diagnose A Bad Pitman Arm

Diagnosing a faulty pitman arm requires careful observation and a methodical approach. If you suspect an issue with your pitman arm, following these steps can help confirm your suspicions. Always remember to prioritize safety when working on your vehicle.

Materials You Will Need

Before starting, make sure you have safety glasses, mechanic gloves, a flashlight, and a friend to assist you.

Visual Inspection

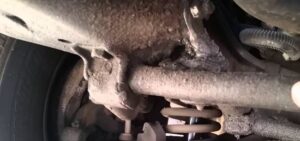

The first step involves a visual inspection of the pitman arm. Wearing your safety glasses and gloves, get under your vehicle and locate the pitman arm. It’s typically attached to the steering box and the steering linkage. Look for any visible signs of wear or damage. This can include rust, corrosion, or physical deformities that suggest the arm has been compromised.

Checking for Play

The next step is to check for ‘play’ or delay in the pitman arm’s movement. For this, you’ll need a friend’s help. Ask them to gently move the steering wheel back and forth while you observe the pitman arm. If the pitman arm is in good condition, it should move immediately and proportionately with the steering wheel. If there’s a noticeable delay or lack of movement, your pitman arm may be worn out or damaged.

Listening for Unusual Noises

Also, while your friend is turning the steering wheel, keep your ears open for any unusual noises. Sounds like clunking or squeaking when the steering wheel turns can also indicate a faulty pitman arm.

Checking for Leaks

Finally, while you’re under the vehicle, it’s a good idea to look for fluid leaks from the steering box. A leak can impact the functioning of the pitman arm and may indicate other potential issues with your vehicle’s steering system.

If at any point you feel uncomfortable performing these steps or if the problem remains undiagnosed, don’t hesitate to consult with a professional mechanic. They have the expertise to accurately identify and repair problems with the pitman arm and other components of the steering system.

How to Replace a Bad Pitman Arm

When it comes to replacing a faulty pitman arm, the task can be somewhat challenging for those inexperienced with vehicle maintenance. However, with the right tools and instructions, it’s certainly doable. Always remember to put safety first, and if you feel uncomfortable performing any of these steps, don’t hesitate to consult a professional mechanic.

Materials Needed: Safety glasses, mechanic gloves, pitman arm puller, wrench set, new pitman arm, and grease for lubrication.

Step 1: Prepare Your Vehicle Firstly, park your vehicle on a flat, level surface and engage the parking brake. Using safety glasses and mechanic gloves is also essential for personal safety.

Step 2: Locate the Pitman Arm Get under your vehicle and locate the pitman arm, which is typically attached to the steering box and the steering linkage.

Step 3: Remove the Old Pitman Arm Using the appropriate size wrench, remove the nut and washer that secure the pitman arm to the steering box. Once the nut is removed, use a pitman arm puller to remove the arm from the steering box. This tool is specifically designed for this purpose and makes the process much safer and easier.

Step 4: Install the New Pitman Arm Take your new pitman arm and attach it to the steering box where the old one was removed. Ensure it is properly aligned with the sector shaft on the steering box. Once aligned, secure it using the washer and nut. Use your wrench to tighten it firmly, but be careful not to over-tighten as this could cause damage.

Step 5: Lubricate and Check Lubricate the new pitman arm according to the manufacturer’s instructions. After installation, ensure it’s secure and moves smoothly without obstruction.

Step 6: Test Drive Finally, take your vehicle for a test drive to ensure the replacement pitman arm is functioning correctly. Check for any play in the steering wheel and ensure the vehicle responds accurately to steering input.

Again, if at any point you feel uncertain about these steps, consult with a professional mechanic. A correctly installed pitman arm is essential for safe and effective vehicle steering.

Preventive Measures to Extend the Life of Pitman Arms

The best way to deal with a bad pitman arm is to prevent it from failing in the first place. Regular maintenance of your vehicle’s steering system can help you spot early signs of wear and tear and address them before they become significant problems. Here are some preventive measures you can take:

• Regular Inspections: Make a habit of visually inspecting your pitman arm regularly, looking out for signs of wear, rust, or other physical damage.
• Scheduled Servicing: Stick to your vehicle’s scheduled servicing. These routine checks by professionals can help detect any budding problems with your pitman arm.
• Drive Carefully: Try to avoid hard impacts such as driving fast over speed bumps or hitting curbs, as these can put unnecessary stress on the pitman arm.
• Use Quality Parts: If replacement is necessary, always choose high-quality pitman arms that meet your vehicle manufacturer’s specifications.
• Professional Installation: If you’re not confident about replacing the pitman arm yourself, have it done by a professional to ensure it’s installed correctly.

Conclusion

Understanding the critical role of the pitman arm in your vehicle’s steering system and knowing how to spot signs of wear and tear can go a long way in maintaining your vehicle’s performance and safety. Regular inspections and maintenance, along with timely replacements, are key to extending the life of your pitman arm and ensuring a smooth ride.

Whether you’re a seasoned mechanic or a do-it-yourself car owner, we hope this guide has been informative and helpful in understanding the ins and outs of pitman arms. Remember, taking care of your vehicle’s components is not just about avoiding repair costs; it’s also about ensuring your safety and the safety of others on the road. Stay safe and happy driving!
