In today’s technologically advanced world, our cars have become sophisticated machines with intricate systems designed to improve performance, safety, and efficiency. Along with this advancement comes a series of error codes that help diagnose and pinpoint issues that may arise within a vehicle’s various components. These error codes are essential in maintaining optimal performance and ensuring the longevity of your car.
One such prevalent error code that modern vehicles may encounter is the P059F code. This code is related to the Active Grille Shutter (AGS) system, which plays a vital role in improving a car’s aerodynamics and fuel efficiency. The P059F code is often an indication that there’s an issue with this crucial system, and it requires your immediate attention.
The purpose of this blog post is to provide you with a comprehensive understanding of the P059F code, its causes, symptoms, and the steps required to diagnose and troubleshoot this common car error code effectively. By the end of this guide, you’ll have the knowledge and confidence to tackle this issue head-on, ensuring that your vehicle remains in peak condition for years to come
Before diving into the details of troubleshooting and repairing the P059F code, it’s crucial to understand what this code entails and why it’s significant.
Understanding the P059F Code
What Is the P059F code
The P059F code is a diagnostic trouble code (DTC) that indicates a malfunction in the Active Grille Shutter (AGS) system. Specifically, this code signifies that the powertrain control module (PCM) has detected an issue with the AGS system’s performance or a discrepancy between the commanded and actual position of the grille shutters.
The components involved: Active Grille Shutter (AGS) system:
The AGS system is a component found in many modern vehicles, consisting of motorized shutters mounted behind the front grille. These shutters can open or close depending on the engine’s cooling requirements and the vehicle’s speed, allowing for better control over airflow into the engine bay.
Common car models affected by the P059F code:
While the P059F code can potentially affect any vehicle equipped with an AGS system, some car models are more susceptible to this issue. Examples of commonly affected models include:
- Ford Focus
- Chevrolet Cruze
- Dodge Dart
- Chrysler 200
- Nissan Altima
It’s worth noting that even if your vehicle isn’t listed above, it could still encounter the P059F code if it features an AGS system. Always consult your owner’s manual or a professional mechanic for information specific to your car model.
Causes of the P059F Code
Identifying the root cause of the P059F code is crucial for effectively troubleshooting and repairing the issue. There are several potential causes for this code, and it’s essential to examine each one carefully to ensure a thorough diagnosis. Some of the most common causes of the P059F code include:
-
Damaged or faulty AGS motor:
The AGS motor is responsible for opening and closing the grille shutters, and if it malfunctions, the shutters may not operate as intended. A faulty AGS motor can trigger the P059F code, as the PCM will detect an issue with the AGS system’s performance.
-
Faulty AGS control module:
The AGS control module is the component responsible for managing the AGS system, including monitoring shutter position and controlling the motor. If the control module is faulty, it may not be able to properly command the AGS motor, resulting in the P059F code.
-
Wiring or connector issues:
Electrical problems, such as damaged wiring or corroded connectors, can disrupt the communication between the AGS motor, control module, and the PCM. If the PCM does not receive the necessary signals from the AGS system, it may trigger the P059F code.
-
Obstructed or damaged grille shutters:

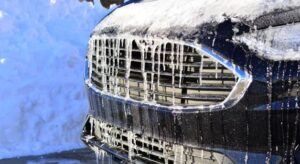

Physical obstructions, such as debris or dirt, can prevent the grille shutters from opening or closing smoothly. Additionally, if the shutters themselves are damaged or misaligned, they may not function correctly, leading to the P059F code.
-
Other possible causes:
While the causes listed above are the most common, other factors can also contribute to the P059F code. These may include a faulty PCM, damaged or loose ground connections, or even software issues within the vehicle’s control modules. It’s essential to consider all possibilities during the diagnostic process to ensure an accurate and effective repair.
Keep in mind that determining the exact cause of the P059F code may require a thorough inspection and testing of various components within the AGS system. It’s crucial to address the root cause to prevent the code from reoccurring and ensure your vehicle’s optimal performance.
Symptoms of the P059F Code
When the P059F code is triggered, you may notice several symptoms that can help you identify the issue. Being aware of these symptoms can aid in diagnosing the problem and addressing it promptly. Common symptoms associated with the P059F code include:
-
Illuminated Check Engine Light (CEL):
The most apparent symptom of the P059F code is an illuminated Check Engine Light on your dashboard. This light serves as a warning that there is a problem with your vehicle’s engine or related systems, and it should not be ignored. When the PCM detects an issue with the AGS system, it will trigger the CEL to alert the driver.
-
Reduced fuel efficiency:
One of the primary functions of the AGS system is to improve fuel efficiency by reducing aerodynamic drag. If the system is not functioning correctly due to the P059F code, you may notice a decrease in your vehicle’s fuel economy.
-
Poor engine performance:
If the AGS system is malfunctioning, it may not be able to regulate airflow effectively, leading to suboptimal engine performance. This can manifest as reduced power, hesitation, or rough idling.
-
Increased engine temperature:

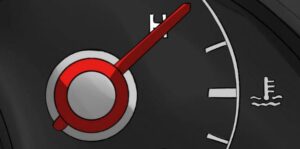

The AGS system also plays a role in controlling engine temperature. If the grille shutters cannot open or close as needed, the engine may not receive adequate cooling, leading to increased engine temperature. In severe cases, this can result in overheating and potential engine damage.
-
Identifying other potential symptoms:
While the symptoms listed above are the most common, you may experience other signs of the P059F code depending on your vehicle’s make and model. Always consult your owner’s manual or a professional mechanic if you suspect an issue with your AGS system
Diagnosing the P059F Code
Before attempting any repairs, it’s crucial to properly diagnose the cause of the P059F code to ensure a successful resolution. Accurate diagnosis is essential to avoid unnecessary repairs and ensure that the issue doesn’t resurface in the future. Here are the steps you should follow to diagnose the P059F code:
-
Importance of proper diagnosis:
A thorough diagnosis is key to identifying the root cause of the P059F code and addressing it effectively. Skipping or rushing through the diagnostic process can lead to misdiagnoses and wasted time and resources on incorrect repairs. Always take the time to diagnose the issue carefully and consult a professional mechanic if necessary.
-
Scanning the vehicle using an OBD-II scanner:
The first step in diagnosing the P059F code is to use an OBD-II scanner to read the stored trouble codes from your vehicle’s PCM. This will confirm the presence of the P059F code and may reveal any additional codes that could be related to the issue. Make a note of all the codes and their descriptions for further reference during the diagnostic process.
-
Visual inspection of the AGS system and wiring:
After confirming the presence of the P059F code, perform a visual inspection of the AGS system components, including the motor, shutters, and wiring. Look for any signs of damage, wear, or corrosion that could be causing the issue. Check the connectors for proper seating and ensure that there are no loose or frayed wires.
-
Performing additional tests:
If the visual inspection does not reveal any apparent issues, you may need to perform additional tests to identify the cause of the P059F code. These tests may include:

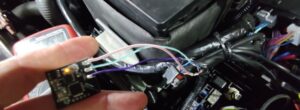

a. Voltage tests: Use a multimeter to check for proper voltage at the AGS motor and control module. This will help determine if there is an electrical issue causing the code.
b. Resistance tests: Measure the resistance of the AGS motor and control module circuits to ensure they are within the specified range. Abnormal resistance readings can indicate a faulty component or wiring issue.
c. Functional tests: Manually command the AGS system to open and close the shutters using a scan tool or by following the manufacturer’s testing procedures. This will help verify if the motor and shutters are functioning correctly.
If you’re unsure about any aspect of the diagnostic process or need assistance, don’t hesitate to consult a professional mechanic. Accurate diagnosis is crucial to resolving the P059F code and ensuring your vehicle’s optimal performance.
Repairing and Troubleshooting the P059F Code
Once you’ve accurately diagnosed the cause of the P059F code, it’s time to proceed with the necessary repairs and troubleshooting. Follow these steps to resolve the issue and restore your vehicle’s performance:
-
Identifying the specific cause:
Refer to the results of your diagnostic tests and visual inspection to determine the root cause of the P059F code. This will guide you in choosing the appropriate repair strategy and ensure that you address the issue effectively.
-
Repair or replacement of the AGS motor:
If your diagnosis points to a damaged or faulty AGS motor, it may be necessary to repair or replace the motor to resolve the P059F code. Follow the manufacturer’s guidelines for replacing the motor, and ensure that the new motor is compatible with your vehicle’s make and model.
-
Repair or replacement of the AGS control module:
If the AGS control module is found to be faulty, repair or replace it as needed. Always consult your owner’s manual or a professional mechanic for guidance on the proper replacement procedure for your specific vehicle.
-
Addressing wiring or connector issues:
If your diagnosis reveals wiring or connector problems, repair or replace the damaged components as needed. Ensure that all connectors are properly seated and that there are no loose or frayed wires. In some cases, you may need to consult a professional mechanic to ensure that the wiring is repaired correctly and safely.
- Repairing or replacing damaged grille shutters:
If the grille shutters are obstructed or damaged, clean, repair, or replace them as necessary. Ensure that the shutters can move freely and that there are no obstructions or misalignments that could hinder their operation.
-
Clearing the P059F code after repairs:
Once you’ve completed the necessary repairs, use an OBD-II scanner to clear the P059F code from your vehicle’s PCM. This will reset the Check Engine Light and allow you to verify that the issue has been resolved.
After completing these steps, test-drive your vehicle to ensure that the P059F code does not reappear and that your vehicle’s performance has been restored. If the issue persists or you’re unsure about any aspect of the repair process, consult a professional mechanic for assistance. Timely and accurate repairs are essential to maintaining your vehicle’s optimal performance and preventing further issues down the road.
Preventing the P059F Code
While it’s essential to know how to diagnose and repair the P059F code, taking steps to prevent this issue from occurring in the first place can save you time, money, and frustration. Here are some tips to help you avoid the P059F code and keep your vehicle running smoothly:
Regular maintenance and inspections of the AGS system:
One of the best ways to prevent the P059F code is to perform regular maintenance and inspections of your vehicle’s AGS system. This includes checking the motor, control module, shutters, and wiring for signs of wear, damage, or corrosion. By addressing any potential issues early, you can prevent them from escalating and triggering the P059F code.
Keeping the grille shutters clean and free of debris:
As mentioned earlier, obstructed grille shutters can cause the P059F code. To prevent this issue, ensure that your vehicle’s grille shutters are clean and free of debris, such as leaves, dirt, or snow. Regularly inspect the shutters and remove any obstructions that could hinder their operation.
Monitoring and addressing any warning signs early:
Finally, be proactive in monitoring your vehicle for any warning signs that could indicate a potential issue with the AGS system. This includes paying attention to symptoms such as reduced fuel efficiency, poor engine performance, or an illuminated Check Engine Light. By addressing these warning signs early, you can prevent the P059F code and ensure that your vehicle remains in optimal condition.
In conclusion, taking preventative measures and staying vigilant about your vehicle’s maintenance and performance can help you avoid the P059F code and ensure a smooth and efficient driving experience. By following the tips provided in this guide and consulting a professional mechanic when necessary, you can keep your AGS system in top condition and enjoy the benefits of improved fuel efficiency and vehicle performance.
